Unit tests
A unit test is a way of testing an individual unit of software. A unit is the smallest piece of code that can be logically isolated in a system. The purpose is to validate that each unit of the software performs as designed. In most programming languages, that is a function, a subroutine or a method. In the Software Factory unit tests can be written for the following logic concepts:
- defaults
- layouts
- contexts
- badges

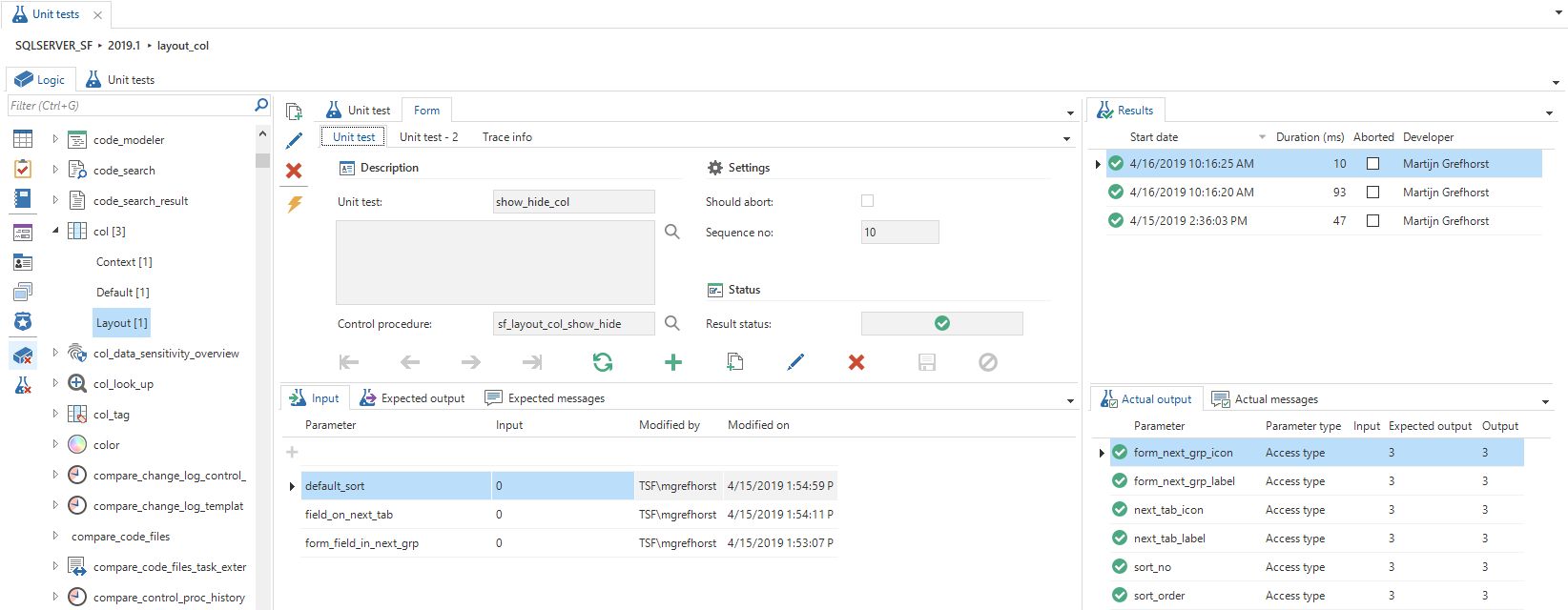

The image below shows the unit test screen. This is the place to create, maintain and execute unit tests.
The list on the left side shows all the objects for which unit tests can be created. Badges are used to show the amount of existing unit tests.
After selecting the correct object and logic type a unit test can be created. A title and description can be filled as well as if the unit test should succeed or not, with the Should abort checkbox. After saving, parameters can be added.
A distinction is made between input and output parameters. The output parameters will be checked after the unit test has been executed. In addition, the expected messages can be specified. These will also be checked after performing a unit test.
The Overview tab page shows an overview of all unit tests for the selected project version. By selecting one or multiple rows the unit tests can be executed.
Functionality Modeler

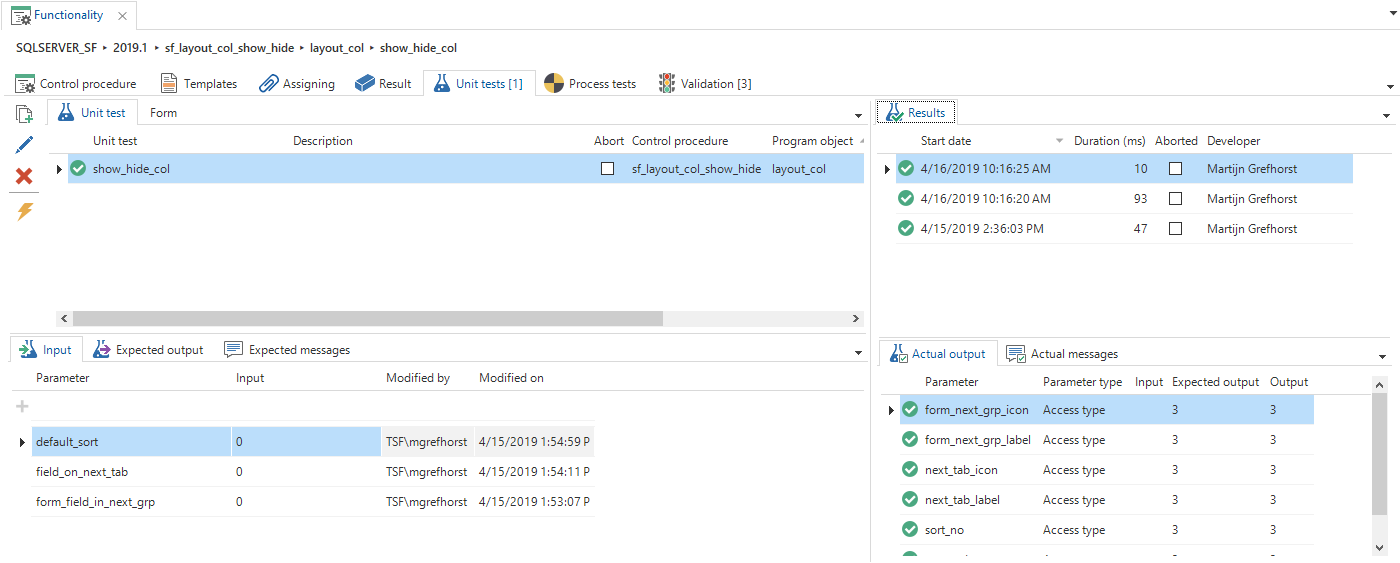

Unit tests can also be created, maintained or executed from the Functionality modeler.
The list shows all the unit tests that are directly connected with the program objects on the result page. For example, when a default procedure is created for Employee to combine the first and last name to display name, the written unit test that validates the email address is also shown in the list.
Also, all unit tests are shown that have the selected control procedure linked as primarily.
